Header FUSION FS1

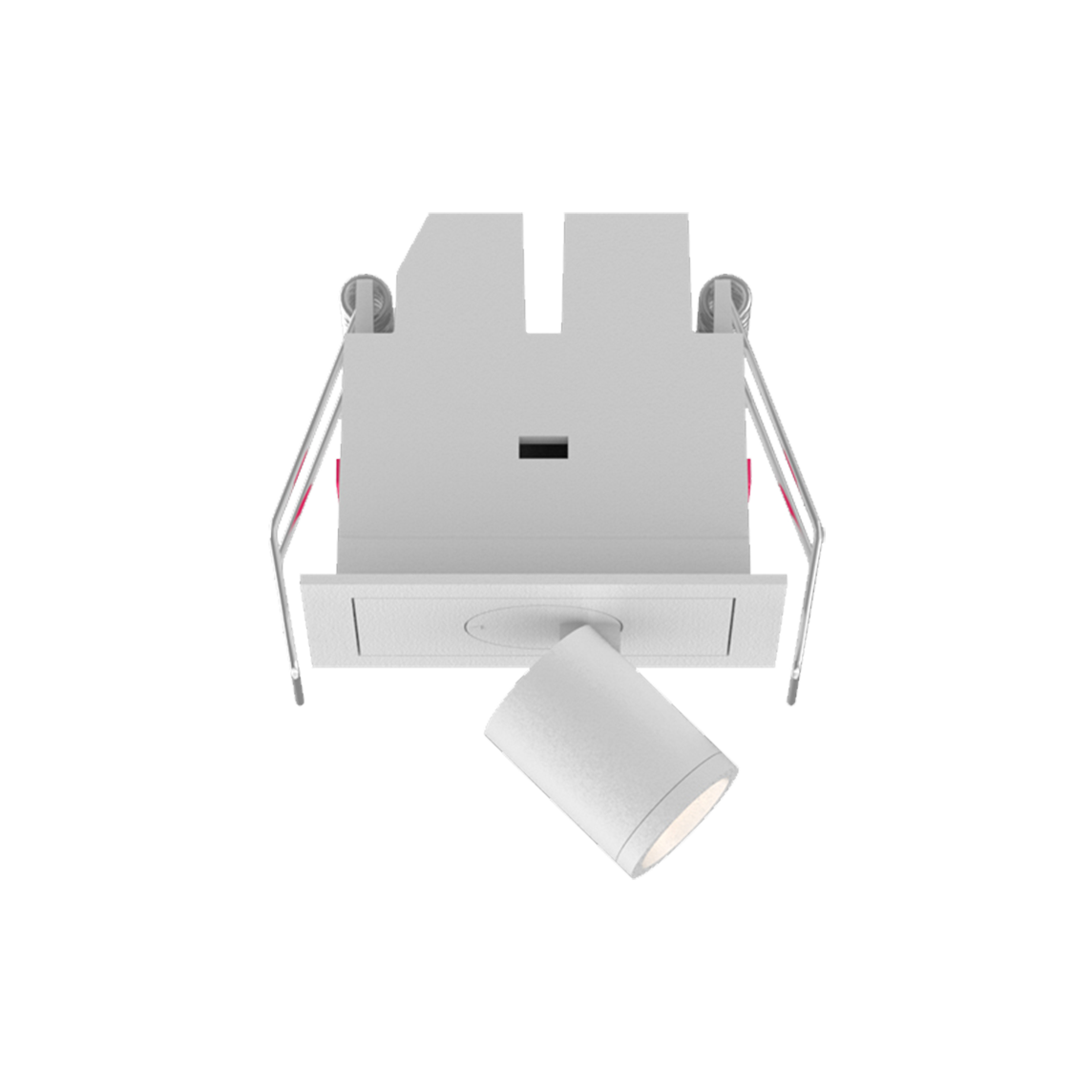

FUSION Adjustable Spotlight

FUSION FS1

Promotion Picture FUSION FS1

Product Details

General

  • Indoor
  • Downlight, Spotlight
  • Recessed mounted
  • square
  • black, white
  • none
  • 20

LED

  • 2700K, 3000K, 4000K
  • CRI80, CRI90
  • <= 280lm
  • <= 190lm
  • 50000h@L80B10
  • SDCM: 3
  • LED Chip

Optics

  • 15°, 30°
  • UGR <19

Electric

  • none
  • 2W
  • 3W
  • 3.5V
  • 700mA

Dimensions

  • 70mm x 45mm
  • 62mm x 37mm
  • 60mm
  • 120mm
  • 200g
  • 240g
  • max. 90°
  • 355°

Symbols

Warranty
Certificate 2
Certificate 1
non Harzardous
Mounting Type
Waste Disposal
Cutout62x37mm
Ceiling Thickness
Driver
CULUS

Models FUSION FS1

Product filter
Choose your product properties
FS1-8271502N-BN
Colourblack
Reflectornone
CCT2700K
CRI80
System Output160lm
System Power3W
Beam Angle15°
LED-Drivernone
Details
FS1-8271502N-WN
Colourwhite
Reflectornone
CCT2700K
CRI80
System Output160lm
System Power3W
Beam Angle15°
LED-Drivernone
Details
FS1-8273002N-BN
Colourblack
Reflectornone
CCT2700K
CRI80
System Output160lm
System Power3W
Beam Angle30°
LED-Drivernone
Details
FS1-8273002N-WN
Colourwhite
Reflectornone
CCT2700K
CRI80
System Output160lm
System Power3W
Beam Angle30°
LED-Drivernone
Details
FS1-8301502N-BN
Colourblack
Reflectornone
CCT3000K
CRI80
System Output170lm
System Power3W
Beam Angle15°
LED-Drivernone
Details
FS1-8301502N-WN
Colourwhite
Reflectornone
CCT3000K
CRI80
System Output170lm
System Power3W
Beam Angle15°
LED-Drivernone
Details
FS1-8303002N-BN
Colourblack
Reflectornone
CCT3000K
CRI80
System Output170lm
System Power3W
Beam Angle30°
LED-Drivernone
Details
FS1-8303002N-WN
Colourwhite
Reflectornone
CCT3000K
CRI80
System Output170lm
System Power3W
Beam Angle30°
LED-Drivernone
Details
FS1-8401502N-BN
Colourblack
Reflectornone
CCT4000K
CRI80
System Output190lm
System Power3W
Beam Angle15°
LED-Drivernone
Details
FS1-8401502N-WN
Colourwhite
Reflectornone
CCT4000K
CRI80
System Output190lm
System Power3W
Beam Angle15°
LED-Drivernone
Details
FS1-8403002N-BN
Colourblack
Reflectornone
CCT4000K
CRI80
System Output190lm
System Power3W
Beam Angle30°
LED-Drivernone
Details
FS1-8403002N-WN
Colourwhite
Reflectornone
CCT4000K
CRI80
System Output190lm
System Power3W
Beam Angle30°
LED-Drivernone
Details
FS1-9271502N-BN
Colourblack
Reflectornone
CCT2700K
CRI90
System Output130lm
System Power3W
Beam Angle15°
LED-Drivernone
Details
FS1-9271502N-WN
Colourwhite
Reflectornone
CCT2700K
CRI90
System Output130lm
System Power3W
Beam Angle15°
LED-Drivernone
Details
FS1-9273002N-BN
Colourblack
Reflectornone
CCT2700K
CRI90
System Output130lm
System Power3W
Beam Angle30°
LED-Drivernone
Details
FS1-9273002N-WN
Colourwhite
Reflectornone
CCT2700K
CRI90
System Output130lm
System Power3W
Beam Angle30°
LED-Drivernone
Details
FS1-9301502N-BN
Colourblack
Reflectornone
CCT3000K
CRI90
System Output140lm
System Power3W
Beam Angle15°
LED-Drivernone
Details
FS1-9301502N-WN
Colourwhite
Reflectornone
CCT3000K
CRI90
System Output140lm
System Power3W
Beam Angle15°
LED-Drivernone
Details
FS1-9303002N-BN
Colourblack
Reflectornone
CCT3000K
CRI90
System Output140lm
System Power3W
Beam Angle30°
LED-Drivernone
Details
FS1-9303002N-WN
Colourwhite
Reflectornone
CCT3000K
CRI90
System Output140lm
System Power3W
Beam Angle30°
LED-Drivernone
Details
FS1-9401502N-BN
Colourblack
Reflectornone
CCT4000K
CRI90
System Output160lm
System Power3W
Beam Angle15°
LED-Drivernone
Details
FS1-9401502N-WN
Colourwhite
Reflectornone
CCT4000K
CRI90
System Output160lm
System Power3W
Beam Angle15°
LED-Drivernone
Details
FS1-9403002N-BN
Colourblack
Reflectornone
CCT4000K
CRI90
System Output160lm
System Power3W
Beam Angle30°
LED-Drivernone
Details
FS1-9403002N-WN
Colourwhite
Reflectornone
CCT4000K
CRI90
System Output160lm
System Power3W
Beam Angle30°
LED-Drivernone
Details
