Header FUSION FG10
FUSION General Downlight

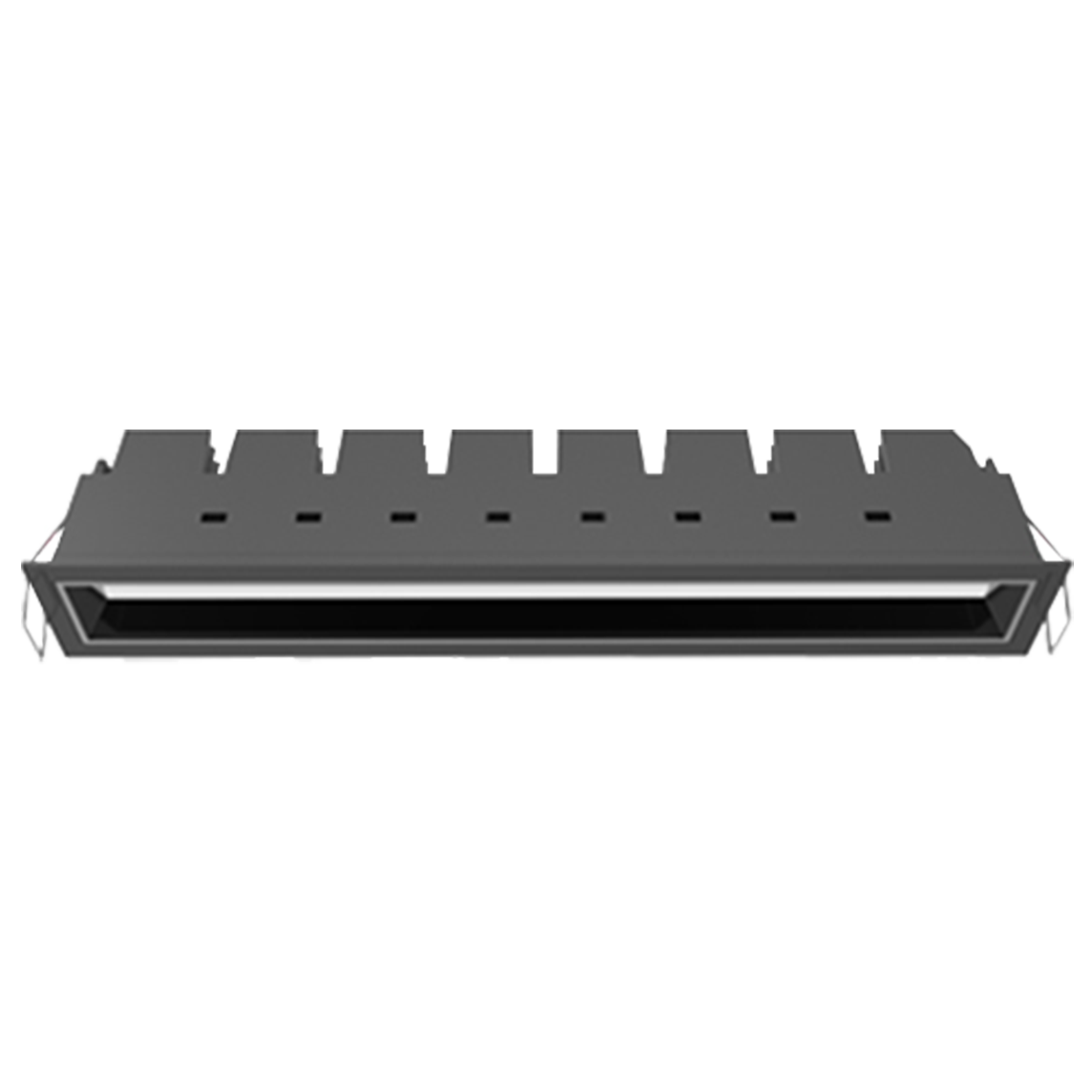

FUSION FG10

Promotion Picture FUSION FG10

Product Details

General

  • Indoor
  • Downlight
  • Recessed mounted
  • square, trimless square
  • black, white
  • black
  • 20

LED

  • 2700K, 3000K, 4000K
  • CRI80, CRI90
  • <= 2800lm
  • <= 950lm
  • 50000h@L80B10
  • SDCM: 3
  • LED Chip

Optics

  • 75°
  • <10

Electric

  • none
  • 22W
  • 24W
  • 31V
  • 700mA

Dimensions

  • 290mm x 45mm, 286.5mm x 41mm
  • 282mm x 37mm, 290mm x 44mm
  • 60mm, 62.5mm
  • 120mm
  • 500g, 800g
  • 600g, 930g

Symbols

Warranty
Certificate 2
Certificate 1
non Harzardous
Mounting Type
Waste Disposal
Cutout282x37mm,290x44mm
Ceiling Thickness
Ceiling Thickness
Driver
CULUS

Models FUSION FG10

Product filter
Choose your product properties
FG10-8277522N-BB
Colourblack
Reflectorblack
CCT2700K
CRI80
System Output900lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FG10-8277522N-WB
Colourwhite
Reflectorblack
CCT2700K
CRI80
System Output900lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FG10-8307522N-BB
Colourblack
Reflectorblack
CCT3000K
CRI80
System Output950lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FG10-8307522N-WB
Colourwhite
Reflectorblack
CCT3000K
CRI80
System Output950lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FG10-8407522N-BB
Colourblack
Reflectorblack
CCT4000K
CRI80
System Output1000lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FG10-8407522N-WB
Colourwhite
Reflectorblack
CCT4000K
CRI80
System Output1000lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FG10-9277522N-BB
Colourblack
Reflectorblack
CCT2700K
CRI90
System Output750lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FG10-9277522N-WB
Colourwhite
Reflectorblack
CCT2700K
CRI90
System Output750lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FG10-9307522N-BB
Colourblack
Reflectorblack
CCT3000K
CRI90
System Output800lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FG10-9307522N-WB
Colourwhite
Reflectorblack
CCT3000K
CRI90
System Output800lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FG10-9407522N-BB
Colourblack
Reflectorblack
CCT4000K
CRI90
System Output850lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FG10-9407522N-WB
Colourwhite
Reflectorblack
CCT4000K
CRI90
System Output850lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FGTA-8277522N-BB
Colourblack
Reflectorblack
CCT2700K
CRI80
System Output900lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FGTA-8277522N-WB
Colourwhite
Reflectorblack
CCT2700K
CRI80
System Output900lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FGTA-8307522N-BB
Colourblack
Reflectorblack
CCT3000K
CRI80
System Output950lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FGTA-8307522N-WB
Colourwhite
Reflectorblack
CCT3000K
CRI80
System Output950lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FGTA-8407522N-BB
Colourblack
Reflectorblack
CCT4000K
CRI80
System Output1000lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FGTA-8407522N-WB
Colourwhite
Reflectorblack
CCT4000K
CRI80
System Output1000lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FGTA-9277522N-BB
Colourblack
Reflectorblack
CCT2700K
CRI90
System Output750lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FGTA-9277522N-WB
Colourwhite
Reflectorblack
CCT2700K
CRI90
System Output750lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FGTA-9307522N-BB
Colourblack
Reflectorblack
CCT3000K
CRI90
System Output800lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FGTA-9307522N-WB
Colourwhite
Reflectorblack
CCT3000K
CRI90
System Output800lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FGTA-9407522N-BB
Colourblack
Reflectorblack
CCT4000K
CRI90
System Output850lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
FGTA-9407522N-WB
Colourwhite
Reflectorblack
CCT4000K
CRI90
System Output850lm
System Power24W
Beam Angle75°
LED-Drivernone
Details
