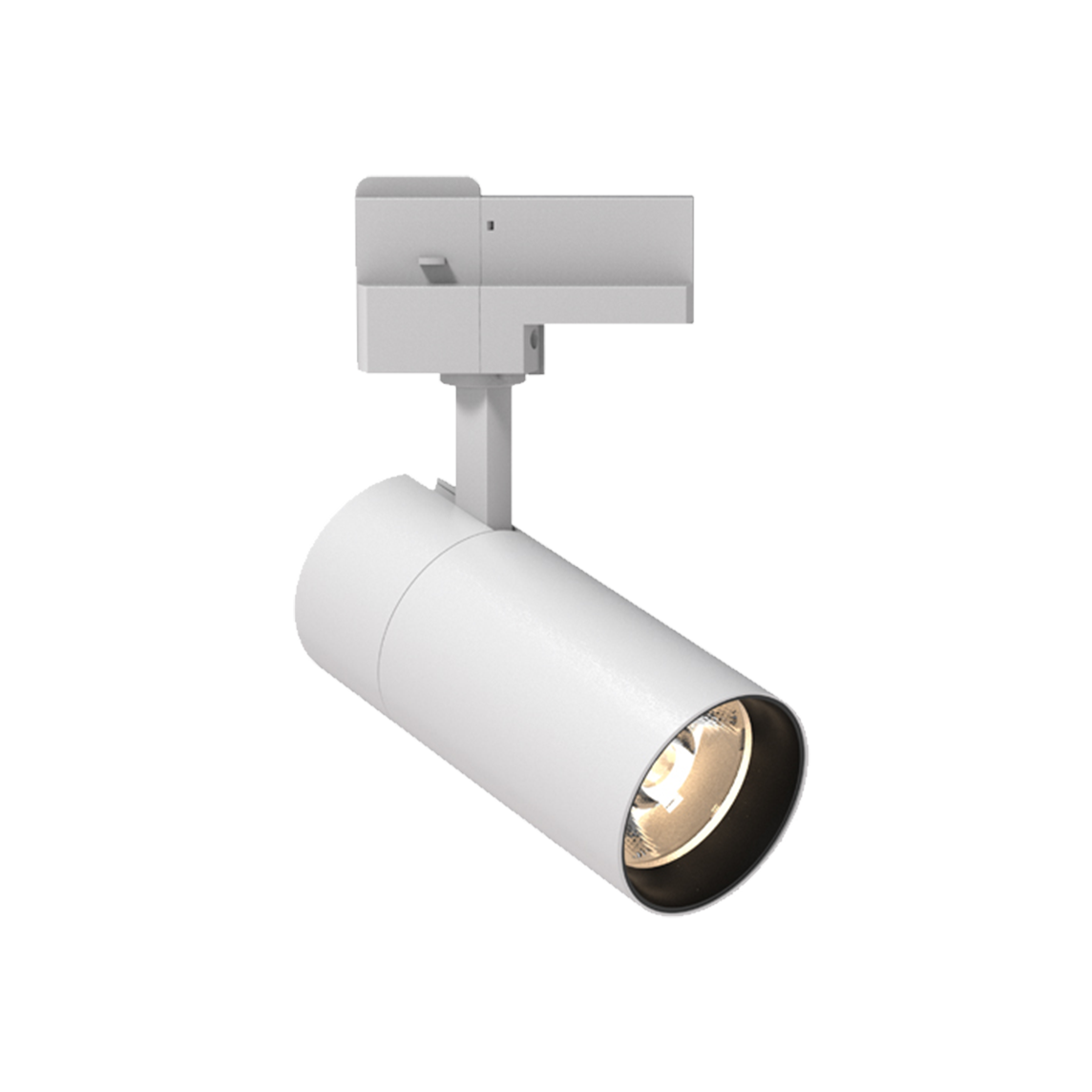

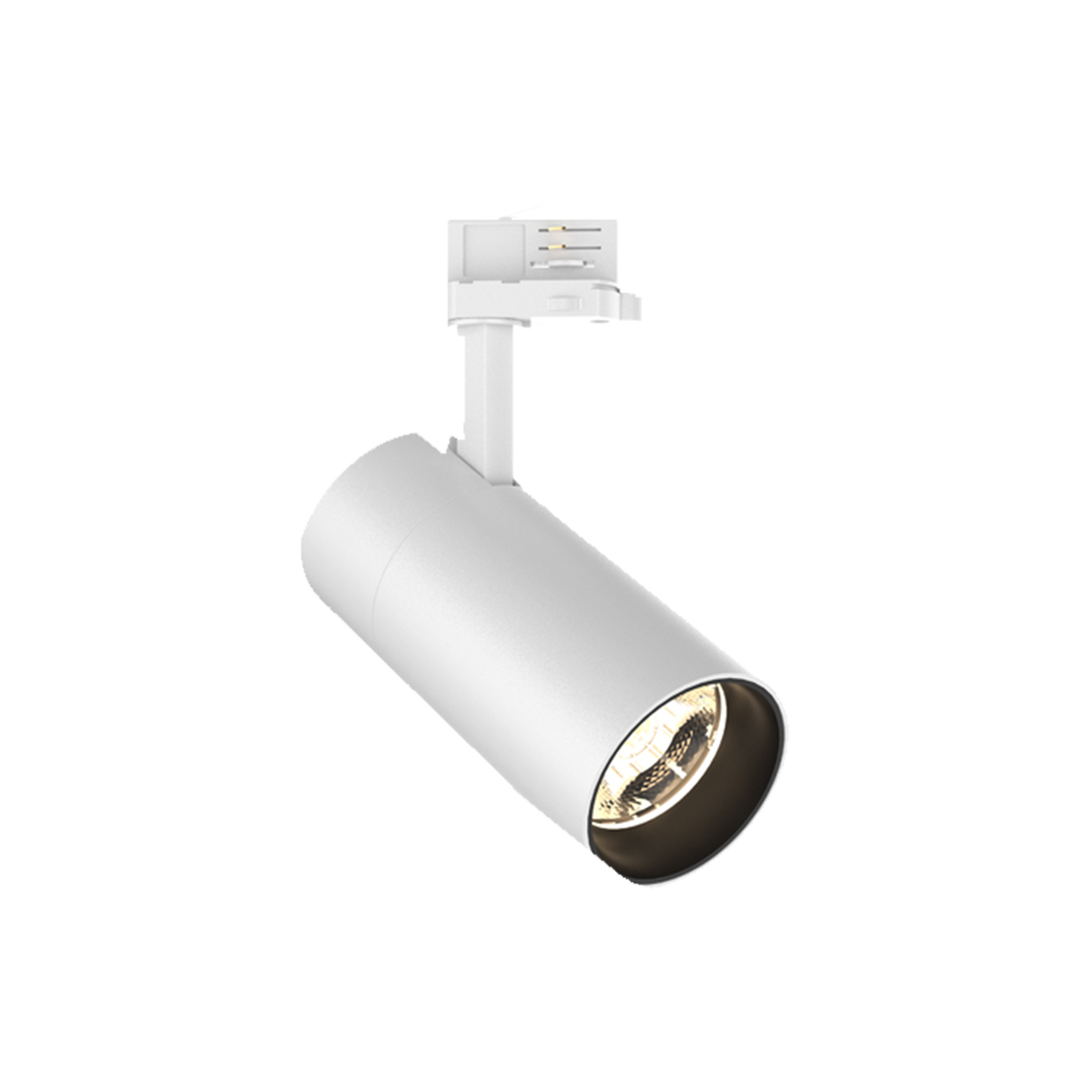

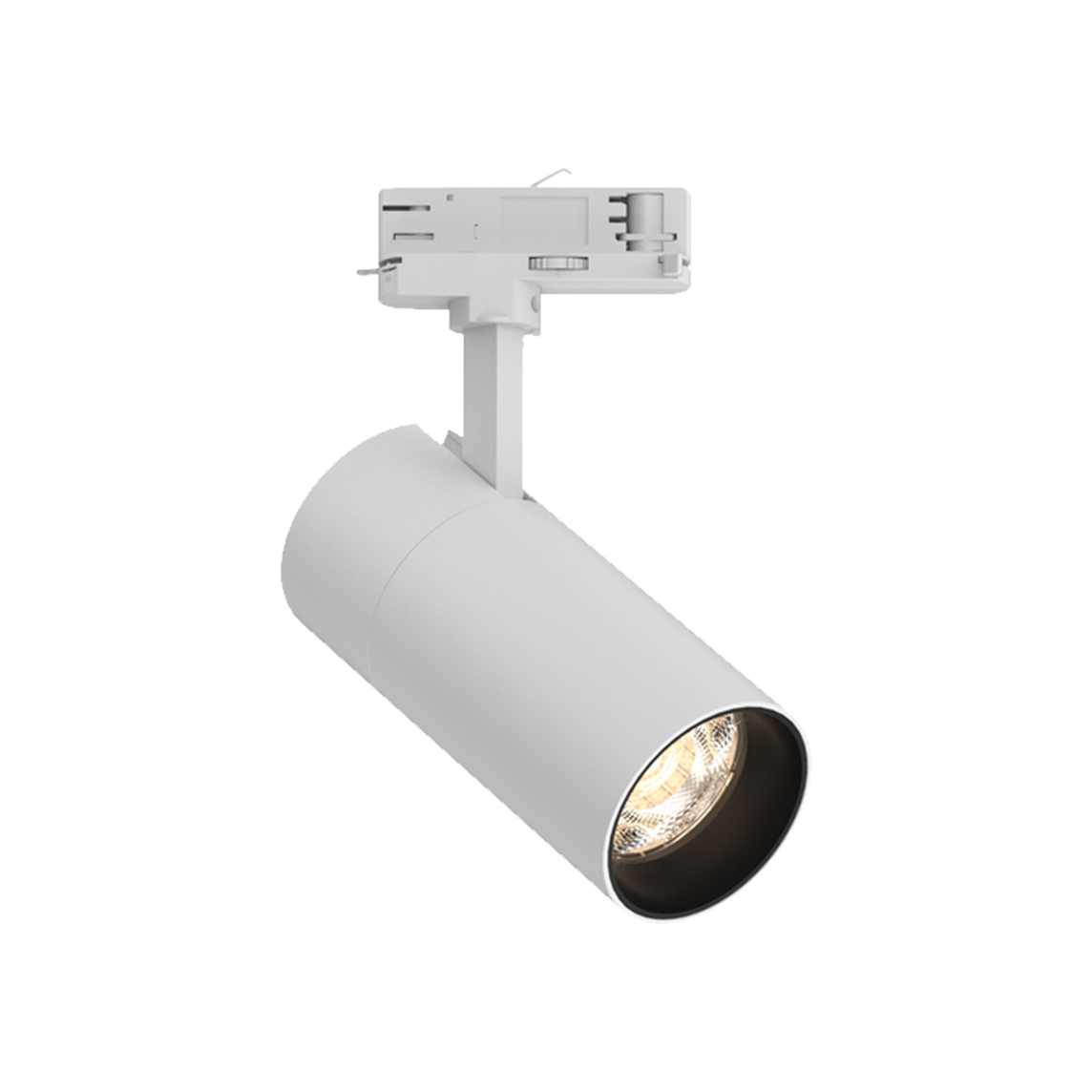

PURE M Tracklight

PURE M

Product Details

General

  • Indoor
  • Tracklight
  • Tracklight
  • round
  • black, white
  • black
  • 20

LED

  • 2700K, 3000K, 4000K
  • CRI80, CRI90
  • <= 3700lm
  • <= 3200lm
  • 50000h@L80B10
  • SDCM: 3
  • LED Chip

Optics

  • 18°, 30°, 45°
  • UGR <19

Electric

  • ON-OFF, DALI Dim, Phase Dim
  • 25W
  • 28W
  • 36V
  • 700mA

Dimensions

  • Ø90mm
  • 200mm
  • 1140g
  • 1440g
  • 0-90°
  • 355°

Symbols

Warranty
Certificate 2
Certificate 1
non Harzardous
Mounting Type
Waste Disposal
Driver
GLOBAL TRAC

Models PURE M

Product filter
Choose your product properties
PUM1-8271828F-BB
Colourblack
Reflectorblack
CCT2700K
CRI80
System Output2900lm
System Power28W
Beam Angle18°
LED-DriverON-OFF
Details
PUM1-8271828F-WB
Colourwhite
Reflectorblack
CCT2700K
CRI80
System Output2900lm
System Power28W
Beam Angle18°
LED-DriverON-OFF
Details
PUM1-8273028F-BB
Colourblack
Reflectorblack
CCT2700K
CRI80
System Output2900lm
System Power28W
Beam Angle30°
LED-DriverON-OFF
Details
PUM1-8273028F-WB
Colourwhite
Reflectorblack
CCT2700K
CRI80
System Output2900lm
System Power28W
Beam Angle30°
LED-DriverON-OFF
Details
PUM1-8274528F-BB
Colourblack
Reflectorblack
CCT2700K
CRI80
System Output2900lm
System Power28W
Beam Angle45°
LED-DriverON-OFF
Details
PUM1-8274528F-WB
Colourwhite
Reflectorblack
CCT2700K
CRI80
System Output2900lm
System Power28W
Beam Angle45°
LED-DriverON-OFF
Details
PUM1-8301828F-BB
Colourblack
Reflectorblack
CCT3000K
CRI80
System Output3000lm
System Power28W
Beam Angle18°
LED-DriverON-OFF
Details
PUM1-8301828F-WB
Colourwhite
Reflectorblack
CCT3000K
CRI80
System Output3000lm
System Power28W
Beam Angle18°
LED-DriverON-OFF
Details
PUM1-8303028F-BB
Colourblack
Reflectorblack
CCT3000K
CRI80
System Output3000lm
System Power28W
Beam Angle30°
LED-DriverON-OFF
Details
PUM1-8303028F-WB
Colourwhite
Reflectorblack
CCT3000K
CRI80
System Output3000lm
System Power28W
Beam Angle30°
LED-DriverON-OFF
Details
PUM1-8304528F-BB
Colourblack
Reflectorblack
CCT3000K
CRI80
System Output3000lm
System Power28W
Beam Angle45°
LED-DriverON-OFF
Details
PUM1-8304528F-WB
Colourwhite
Reflectorblack
CCT3000K
CRI80
System Output3000lm
System Power28W
Beam Angle45°
LED-DriverON-OFF
Details
PUM1-8401828F-WB
Colourblack
Reflectorblack
CCT4000K
CRI80
System Output3200lm
System Power28W
Beam Angle18°
LED-DriverON-OFF
Details
PUM1-8401828F-BB
Colourwhite
Reflectorblack
CCT4000K
CRI80
System Output3200lm
System Power28W
Beam Angle18°
LED-DriverON-OFF
Details
PUM1-8403028F-WB
Colourblack
Reflectorblack
CCT4000K
CRI80
System Output3200lm
System Power28W
Beam Angle30°
LED-DriverON-OFF
Details
PUM1-8403028F-BB
Colourwhite
Reflectorblack
CCT4000K
CRI80
System Output3200lm
System Power28W
Beam Angle30°
LED-DriverON-OFF
Details
PUM1-8404528F-BB
Colourblack
Reflectorblack
CCT4000K
CRI80
System Output3200lm
System Power28W
Beam Angle45°
LED-DriverON-OFF
Details
PUM1-8404528F-WB
Colourwhite
Reflectorblack
CCT4000K
CRI80
System Output3200lm
System Power28W
Beam Angle45°
LED-DriverON-OFF
Details
PUM1-9271828F-BB
Colourblack
Reflectorblack
CCT2700K
CRI90
System Output2500lm
System Power28W
Beam Angle18°
LED-DriverON-OFF
Details
PUM1-9271828F-WB
Colourwhite
Reflectorblack
CCT2700K
CRI90
System Output2500lm
System Power28W
Beam Angle18°
LED-DriverON-OFF
Details
PUM1-9273028F-BB
Colourblack
Reflectorblack
CCT2700K
CRI90
System Output2500lm
System Power28W
Beam Angle30°
LED-DriverON-OFF
Details
PUM1-9273028F-WB
Colourwhite
Reflectorblack
CCT2700K
CRI90
System Output2500lm
System Power28W
Beam Angle30°
LED-DriverON-OFF
Details
PUM1-9274528F-BB
Colourblack
Reflectorblack
CCT2700K
CRI90
System Output2500lm
System Power28W
Beam Angle45°
LED-DriverON-OFF
Details
PUM1-9274528F-WB
Colourwhite
Reflectorblack
CCT2700K
CRI90
System Output2500lm
System Power28W
Beam Angle45°
LED-DriverON-OFF
Details
PUM1-9301828F-BB
Colourblack
Reflectorblack
CCT3000K
CRI90
System Output2700lm
System Power28W
Beam Angle18°
LED-DriverON-OFF
Details
PUM1-9301828F-WB
Colourwhite
Reflectorblack
CCT3000K
CRI90
System Output2700lm
System Power28W
Beam Angle18°
LED-DriverON-OFF
Details
PUM1-9303028F-BB
Colourblack
Reflectorblack
CCT3000K
CRI90
System Output2700lm
System Power28W
Beam Angle30°
LED-DriverON-OFF
Details
PUM1-9303028F-WB
Colourwhite
Reflectorblack
CCT3000K
CRI90
System Output2700lm
System Power28W
Beam Angle30°
LED-DriverON-OFF
Details
PUM1-9304528F-BB
Colourblack
Reflectorblack
CCT3000K
CRI90
System Output2700lm
System Power28W
Beam Angle45°
LED-DriverON-OFF
Details
PUM1-9304528F-WB
Colourwhite
Reflectorblack
CCT3000K
CRI90
System Output2700lm
System Power28W
Beam Angle45°
LED-DriverON-OFF
Details
PUM1-9401828F-BB
Colourblack
Reflectorblack
CCT4000K
CRI90
System Output2900lm
System Power28W
Beam Angle18°
LED-DriverON-OFF
Details
PUM1-9401828F-WB
Colourwhite
Reflectorblack
CCT4000K
CRI90
System Output2900lm
System Power28W
Beam Angle18°
LED-DriverON-OFF
Details
PUM1-9403028F-BB
Colourblack
Reflectorblack
CCT4000K
CRI90
System Output2900lm
System Power28W
Beam Angle30°
LED-DriverON-OFF
Details
PUM1-9403028F-WB
Colourwhite
Reflectorblack
CCT4000K
CRI90
System Output2900lm
System Power28W
Beam Angle30°
LED-DriverON-OFF
Details
PUM1-9404528F-BB
Colourblack
Reflectorblack
CCT4000K
CRI90
System Output2900lm
System Power28W
Beam Angle45°
LED-DriverON-OFF
Details
PUM1-9404528F-WB
Colourwhite
Reflectorblack
CCT4000K
CRI90
System Output2900lm
System Power28W
Beam Angle45°
LED-DriverON-OFF
Details
PUM1-8271828D-BB
Colourblack
Reflectorblack
CCT2700K
CRI80
System Output2900lm
System Power28W
Beam Angle18°
LED-DriverDALI Dim
Details
PUM1-8271828D-WB
Colourwhite
Reflectorblack
CCT2700K
CRI80
System Output2900lm
System Power28W
Beam Angle18°
LED-DriverDALI Dim
Details
PUM1-8273028D-BB
Colourblack
Reflectorblack
CCT2700K
CRI80
System Output2900lm
System Power28W
Beam Angle30°
LED-DriverDALI Dim
Details
PUM1-8273028D-WB
Colourwhite
Reflectorblack
CCT2700K
CRI80
System Output2900lm
System Power28W
Beam Angle30°
LED-DriverDALI Dim
Details
PUM1-8274528D-BB
Colourblack
Reflectorblack
CCT2700K
CRI80
System Output2900lm
System Power28W
Beam Angle45°
LED-DriverDALI Dim
Details
PUM1-8274528D-WB
Colourwhite
Reflectorblack
CCT2700K
CRI80
System Output2900lm
System Power28W
Beam Angle45°
LED-DriverDALI Dim
Details
PUM1-8301828D-BB
Colourblack
Reflectorblack
CCT3000K
CRI80
System Output3000lm
System Power28W
Beam Angle18°
LED-DriverDALI Dim
Details
PUM1-8301828D-WB
Colourwhite
Reflectorblack
CCT3000K
CRI80
System Output3000lm
System Power28W
Beam Angle18°
LED-DriverDALI Dim
Details
PUM1-8303028D-BB
Colourblack
Reflectorblack
CCT3000K
CRI80
System Output3000lm
System Power28W
Beam Angle30°
LED-DriverDALI Dim
Details
PUM1-8303028D-WB
Colourwhite
Reflectorblack
CCT3000K
CRI80
System Output3000lm
System Power28W
Beam Angle30°
LED-DriverDALI Dim
Details
PUM1-8304528D-BB
Colourblack
Reflectorblack
CCT3000K
CRI80
System Output3000lm
System Power28W
Beam Angle45°
LED-DriverDALI Dim
Details
PUM1-8304528D-WB
Colourwhite
Reflectorblack
CCT3000K
CRI80
System Output3000lm
System Power28W
Beam Angle45°
LED-DriverDALI Dim
Details
PUM1-8401828D-WB
Colourblack
Reflectorblack
CCT4000K
CRI80
System Output3200lm
System Power28W
Beam Angle18°
LED-DriverDALI Dim
Details
PUM1-8401828D-BB
Colourwhite
Reflectorblack
CCT4000K
CRI80
System Output3200lm
System Power28W
Beam Angle18°
LED-DriverDALI Dim
Details
PUM1-8403028D-WB
Colourblack
Reflectorblack
CCT4000K
CRI80
System Output3200lm
System Power28W
Beam Angle30°
LED-DriverDALI Dim
Details
PUM1-8403028D-BB
Colourwhite
Reflectorblack
CCT4000K
CRI80
System Output3200lm
System Power28W
Beam Angle30°
LED-DriverDALI Dim
Details
PUM1-8404528D-BB
Colourblack
Reflectorblack
CCT4000K
CRI80
System Output3200lm
System Power28W
Beam Angle45°
LED-DriverDALI Dim
Details
PUM1-8404528D-WB
Colourwhite
Reflectorblack
CCT4000K
CRI80
System Output3200lm
System Power28W
Beam Angle45°
LED-DriverDALI Dim
Details
PUM1-9271828D-BB
Colourblack
Reflectorblack
CCT2700K
CRI90
System Output2500lm
System Power28W
Beam Angle18°
LED-DriverDALI Dim
Details
PUM1-9271828D-WB
Colourwhite
Reflectorblack
CCT2700K
CRI90
System Output2500lm
System Power28W
Beam Angle18°
LED-DriverDALI Dim
Details
PUM1-9273028D-BB
Colourblack
Reflectorblack
CCT2700K
CRI90
System Output2500lm
System Power28W
Beam Angle30°
LED-DriverDALI Dim
Details
PUM1-9273028D-WB
Colourwhite
Reflectorblack
CCT2700K
CRI90
System Output2500lm
System Power28W
Beam Angle30°
LED-DriverDALI Dim
Details
PUM1-9274528D-BB
Colourblack
Reflectorblack
CCT2700K
CRI90
System Output2500lm
System Power28W
Beam Angle45°
LED-DriverDALI Dim
Details
PUM1-9274528D-WB
Colourwhite
Reflectorblack
CCT2700K
CRI90
System Output2500lm
System Power28W
Beam Angle45°
LED-DriverDALI Dim
Details
PUM1-9301828D-BB
Colourblack
Reflectorblack
CCT3000K
CRI90
System Output2700lm
System Power28W
Beam Angle18°
LED-DriverDALI Dim
Details
PUM1-9301828D-WB
Colourwhite
Reflectorblack
CCT3000K
CRI90
System Output2700lm
System Power28W
Beam Angle18°
LED-DriverDALI Dim
Details
PUM1-9303028D-BB
Colourblack
Reflectorblack
CCT3000K
CRI90
System Output2700lm
System Power28W
Beam Angle30°
LED-DriverDALI Dim
Details
PUM1-9303028D-WB
Colourwhite
Reflectorblack
CCT3000K
CRI90
System Output2700lm
System Power28W
Beam Angle30°
LED-DriverDALI Dim
Details
PUM1-9304528D-BB
Colourblack
Reflectorblack
CCT3000K
CRI90
System Output2700lm
System Power28W
Beam Angle45°
LED-DriverDALI Dim
Details
PUM1-9304528D-WB
Colourwhite
Reflectorblack
CCT3000K
CRI90
System Output2700lm
System Power28W
Beam Angle45°
LED-DriverDALI Dim
Details
PUM1-9401828D-BB
Colourblack
Reflectorblack
CCT4000K
CRI90
System Output2900lm
System Power28W
Beam Angle18°
LED-DriverDALI Dim
Details
PUM1-9401828D-WB
Colourwhite
Reflectorblack
CCT4000K
CRI90
System Output2900lm
System Power28W
Beam Angle18°
LED-DriverDALI Dim
Details
PUM1-9403028D-BB
Colourblack
Reflectorblack
CCT4000K
CRI90
System Output2900lm
System Power28W
Beam Angle30°
LED-DriverDALI Dim
Details
PUM1-9403028D-WB
Colourwhite
Reflectorblack
CCT4000K
CRI90
System Output2900lm
System Power28W
Beam Angle30°
LED-DriverDALI Dim
Details
PUM1-9404528D-BB
Colourblack
Reflectorblack
CCT4000K
CRI90
System Output2900lm
System Power28W
Beam Angle45°
LED-DriverDALI Dim
Details
PUM1-9404528D-WB
Colourwhite
Reflectorblack
CCT4000K
CRI90
System Output2900lm
System Power28W
Beam Angle45°
LED-DriverDALI Dim
Details
PUM1-8271828P-BB
Colourblack
Reflectorblack
CCT2700K
CRI80
System Output2900lm
System Power28W
Beam Angle18°
LED-DriverPhase Dim
Details
PUM1-8271828P-WB
Colourwhite
Reflectorblack
CCT2700K
CRI80
System Output2900lm
System Power28W
Beam Angle18°
LED-DriverPhase Dim
Details
PUM1-8273028P-BB
Colourblack
Reflectorblack
CCT2700K
CRI80
System Output2900lm
System Power28W
Beam Angle30°
LED-DriverPhase Dim
Details
PUM1-8273028P-WB
Colourwhite
Reflectorblack
CCT2700K
CRI80
System Output2900lm
System Power28W
Beam Angle30°
LED-DriverPhase Dim
Details
PUM1-8274528P-BB
Colourblack
Reflectorblack
CCT2700K
CRI80
System Output2900lm
System Power28W
Beam Angle45°
LED-DriverPhase Dim
Details
PUM1-8274528P-WB
Colourwhite
Reflectorblack
CCT2700K
CRI80
System Output2900lm
System Power28W
Beam Angle45°
LED-DriverPhase Dim
Details
PUM1-8301828P-BB
Colourblack
Reflectorblack
CCT3000K
CRI80
System Output3000lm
System Power28W
Beam Angle18°
LED-DriverPhase Dim
Details
PUM1-8301828P-WB
Colourwhite
Reflectorblack
CCT3000K
CRI80
System Output3000lm
System Power28W
Beam Angle18°
LED-DriverPhase Dim
Details
PUM1-8303028P-BB
Colourblack
Reflectorblack
CCT3000K
CRI80
System Output3000lm
System Power28W
Beam Angle30°
LED-DriverPhase Dim
Details
PUM1-8303028P-WB
Colourwhite
Reflectorblack
CCT3000K
CRI80
System Output3000lm
System Power28W
Beam Angle30°
LED-DriverPhase Dim
Details
PUM1-8304528P-BB
Colourblack
Reflectorblack
CCT3000K
CRI80
System Output3000lm
System Power28W
Beam Angle45°
LED-DriverPhase Dim
Details
PUM1-8304528P-WB
Colourwhite
Reflectorblack
CCT3000K
CRI80
System Output3000lm
System Power28W
Beam Angle45°
LED-DriverPhase Dim
Details
PUM1-8401828P-WB
Colourblack
Reflectorblack
CCT4000K
CRI80
System Output3200lm
System Power28W
Beam Angle18°
LED-DriverPhase Dim
Details
PUM1-8401828P-BB
Colourwhite
Reflectorblack
CCT4000K
CRI80
System Output3200lm
System Power28W
Beam Angle18°
LED-DriverPhase Dim
Details
PUM1-8403028P-WB
Colourblack
Reflectorblack
CCT4000K
CRI80
System Output3200lm
System Power28W
Beam Angle30°
LED-DriverPhase Dim
Details
PUM1-8403028P-BB
Colourwhite
Reflectorblack
CCT4000K
CRI80
System Output3200lm
System Power28W
Beam Angle30°
LED-DriverPhase Dim
Details
PUM1-8404528P-BB
Colourblack
Reflectorblack
CCT4000K
CRI80
System Output3200lm
System Power28W
Beam Angle45°
LED-DriverPhase Dim
Details
PUM1-8404528P-WB
Colourwhite
Reflectorblack
CCT4000K
CRI80
System Output3200lm
System Power28W
Beam Angle45°
LED-DriverPhase Dim
Details
PUM1-9271828P-BB
Colourblack
Reflectorblack
CCT2700K
CRI90
System Output2500lm
System Power28W
Beam Angle18°
LED-DriverPhase Dim
Details
PUM1-9271828P-WB
Colourwhite
Reflectorblack
CCT2700K
CRI90
System Output2500lm
System Power28W
Beam Angle18°
LED-DriverPhase Dim
Details
PUM1-9273028P-BB
Colourblack
Reflectorblack
CCT2700K
CRI90
System Output2500lm
System Power28W
Beam Angle30°
LED-DriverPhase Dim
Details
PUM1-9273028P-WB
Colourwhite
Reflectorblack
CCT2700K
CRI90
System Output2500lm
System Power28W
Beam Angle30°
LED-DriverPhase Dim
Details
PUM1-9274528P-BB
Colourblack
Reflectorblack
CCT2700K
CRI90
System Output2500lm
System Power28W
Beam Angle45°
LED-DriverPhase Dim
Details
PUM1-9274528P-WB
Colourwhite
Reflectorblack
CCT2700K
CRI90
System Output2500lm
System Power28W
Beam Angle45°
LED-DriverPhase Dim
Details
PUM1-9301828P-BB
Colourblack
Reflectorblack
CCT3000K
CRI90
System Output2700lm
System Power28W
Beam Angle18°
LED-DriverPhase Dim
Details
PUM1-9301828P-WB
Colourwhite
Reflectorblack
CCT3000K
CRI90
System Output2700lm
System Power28W
Beam Angle18°
LED-DriverPhase Dim
Details
PUM1-9303028P-BB
Colourblack
Reflectorblack
CCT3000K
CRI90
System Output2700lm
System Power28W
Beam Angle30°
LED-DriverPhase Dim
Details
PUM1-9303028P-WB
Colourwhite
Reflectorblack
CCT3000K
CRI90
System Output2700lm
System Power28W
Beam Angle30°
LED-DriverPhase Dim
Details
PUM1-9304528P-BB
Colourblack
Reflectorblack
CCT3000K
CRI90
System Output2700lm
System Power28W
Beam Angle45°
LED-DriverPhase Dim
Details
PUM1-9304528P-WB
Colourwhite
Reflectorblack
CCT3000K
CRI90
System Output2700lm
System Power28W
Beam Angle45°
LED-DriverPhase Dim
Details
PUM1-9401828P-BB
Colourblack
Reflectorblack
CCT4000K
CRI90
System Output2900lm
System Power28W
Beam Angle18°
LED-DriverPhase Dim
Details
PUM1-9401828P-WB
Colourwhite
Reflectorblack
CCT4000K
CRI90
System Output2900lm
System Power28W
Beam Angle18°
LED-DriverPhase Dim
Details
PUM1-9403028P-BB
Colourblack
Reflectorblack
CCT4000K
CRI90
System Output2900lm
System Power28W
Beam Angle30°
LED-DriverPhase Dim
Details
PUM1-9403028P-WB
Colourwhite
Reflectorblack
CCT4000K
CRI90
System Output2900lm
System Power28W
Beam Angle30°
LED-DriverPhase Dim
Details
PUM1-9404528P-BB
Colourblack
Reflectorblack
CCT4000K
CRI90
System Output2900lm
System Power28W
Beam Angle45°
LED-DriverPhase Dim
Details
PUM1-9404528P-WB
Colourwhite
Reflectorblack
CCT4000K
CRI90
System Output2900lm
System Power28W
Beam Angle45°
LED-DriverPhase Dim
Details

NEKO / PURE Projects

Headquarter Under Armour, Hongkong

PURE
Sales Gallery Thu Thiem Hongkong

Sales Gallery Thu Thiem, Hongkong

FUSION | PURE | SENSE
