Application: Indoor
Product Category: Linear Light
Mounting Type: Recessed
Trim: Square
Housing Color: Black, Silver, White
Reflector Color: Opal, Microprismatic
IP: 20
CCT: Tunable White, 2700K, 3000K, 4000K
CRI: >80, >90
System Output: ≤10938lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: LUMINUS
Beam Angle: Direct
UGR: <19
LED Driver: ON-OFF, DALI Dim
LED Power: Low Power, High Power
System Power: 12W, 15W, 16W, 17W, 19W, 22W, 25W, 26W, 29W, 30W, 32W, 34W, 36W, 38W, 41W, 42W, 43W, 45W, 46W, 49W, 52W, 54W, 57W, 60W, 70W, 71W, 76W, 93W, 98W
Measurements: 632mm x 88mm, 992mm x 88mm, 1232mm x 88mm, 1472mm x 88mm, 1712mm x 88mm, 1952mm x 88mm, 2192mm x 88mm, 2432mm x 88mm, 2912mm x 88mm, 3152mm x 88mm, 3874mm x 88mm
Cutout: 624mm x 78mm, 984mm x 78mm, 1224mm x 78mm, 1464mm x 78mm, 1704mm x 78mm, 1944mm x 78mm, 2184mm x 78mm, 2424mm x 78mm, 2904mm x 78mm, 3144mm x 78mm, 3866mm x 78mm
Ceiling Height: 140mm
Net Weight: 2500g, 3400g, 3900g, 4500g, 5200g, 5800g, 6600g, 7200g, 8500g, 9200g, 11400g

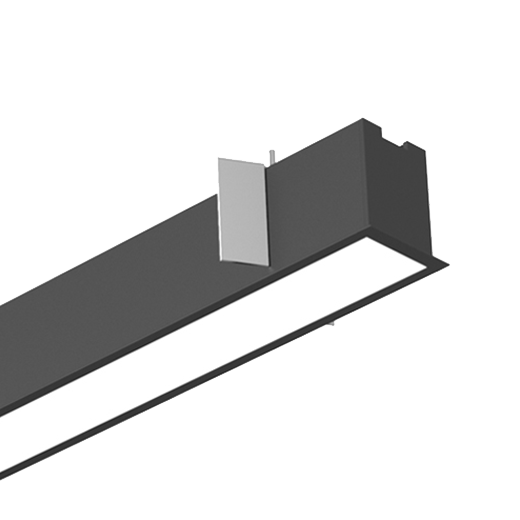

Housing Color: Black
Housing Color: Black

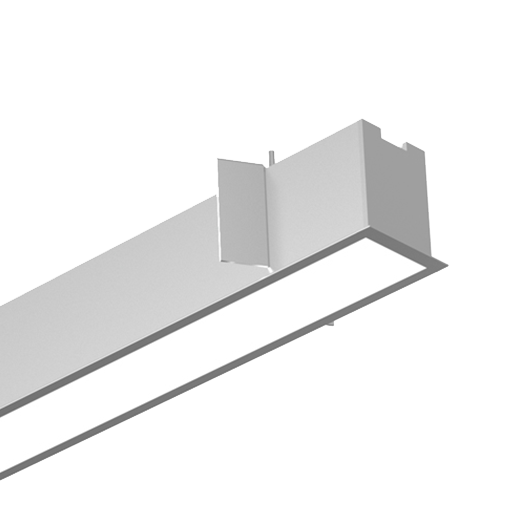

Housing Color: Silver
Housing Color: Silver

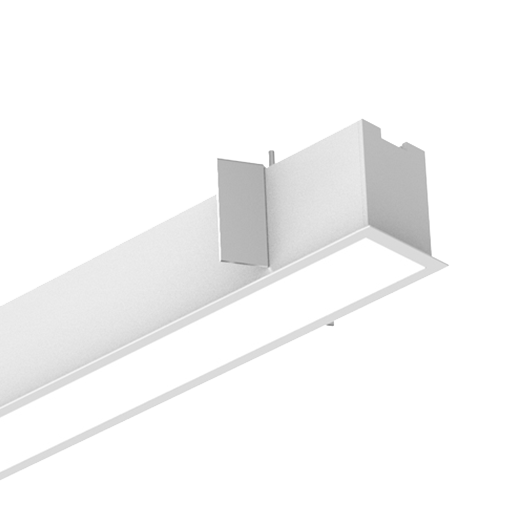

Housing Color: White
Housing Color: White
