Application: Indoor
Product Category: Downlight
Mounting Type: Recessed
Trim: Square
Housing Color: White, Black
Reflector Color: Matt, Black, White, Gold
IP: 20 - (LED Module IP 54)
CCT: Dim-to-Warm, 2700K, 3000K, 4000K
CRI: 80, 90, 95
LED Output: ≤1600lm
System Output: ≤1200lm
Lifetime: 50000h@L80B10
Standard Deviation: SDCM: 3
LED Chip: CITIZEN, BRIDGELUX
Beam Angle: 15°, 20°, 25°, 35°, 60°
UGR: <19
LED Driver: None, ON-OFF, Phase Dim, 0-10V Dim, DALI Dim
LED Power: 7.5W, 9W, 11W, 12W, 13W
System Power: 9W, 11W, 13W, 14W, 15W
LED Voltage: 31V, 33V, 36V
LED Current: 250mA, 350mA
Measurements: 85mm x 85mm
Cutout: 75mm x 75mm
Ceiling Height: 125mm, 150mm
Net Weight: 240g, 320g
Gros Weight: 380g, 460g
Pivot: Max. 30°
Rotation: 355°

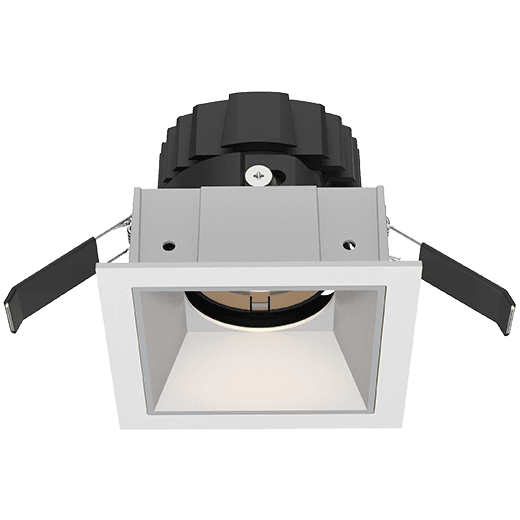

Housing Color: White
Housing Color: White

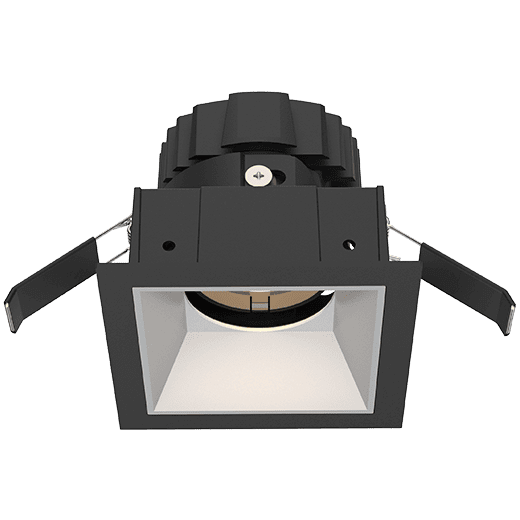

Housing Color: Black
Housing Color: Black
